Quality Mil Spec Wire from Cai Wire!
Mil-Spec wire, short for military specification wire, refers to wiring that meets the rigorous standards established by the U.S. Department of Defense. These standards ensure the wire’s reliability, durability, and performance in demanding environments. Mil-Spec wire is designed to withstand extreme conditions, such as high temperatures, vibration, and exposure to harsh chemicals, making it suitable for use in military and aerospace applications.
Military spec wire is typically characterized by its high-quality materials, precise manufacturing processes, and stringent testing protocols. It often features insulation made from advanced materials like Teflon or Kapton, which provide superior resistance to heat, chemicals, and abrasion. Additionally, Mil-Spec wire is usually marked with specific codes that indicate its compliance with military standards, such as М27500 mil spec wire or M22759 mil spec wire.
Mil-Spec wire is commonly used in critical systems where failure is not an option, such as in aircraft, spacecraft, and military vehicles. It is also employed in other industries requiring high reliability and durability, including telecommunications, medical devices, and industrial equipment. The mil tech wire’s ability to perform reliably in extreme conditions makes it essential for applications where safety and performance are paramount.
What are the most common types of mil spec wire?
There are 2 types of mil spec wire that are most used – М27500 mil spec wire or M22759 mil spec wire.

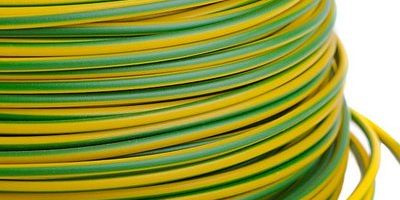

M27500 Mil-Spec wire is a type of military specification cable known for its durability and reliability in extreme conditions. Constructed to meet the rigorous standards set by the U.S. Department of Defense for military and aerospace applications, M27500 mil spec wire is composed of multiple insulated conductors twisted together with a shielding layer, encased in an outer jacket. The conductors are typically made of copper or silver-plated copper, providing excellent electrical conductivity and corrosion resistance. The insulation materials of the M27500 mil spec wire often include high-performance polymers like Teflon (PTFE), ETFE, or TFE, which offer superior thermal stability, chemical resistance, and mechanical strength.
One of the key features of M27500 mil spec wire is its high temperature resistance, allowing it to withstand extreme temperatures, typically ranging from -65°C to +200°C. This makes it suitable for use in harsh environments. Additionally, the advanced insulation materials provide excellent resistance to chemicals, fuels, oils, and moisture, ensuring long-term reliability. The wire often includes a braided or foil shield that protects against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring signal integrity in communication and electronic systems.
Due to these characteristics, M27500 mil spec wire is widely used in critical applications where reliability and performance are paramount. M27500 mil spec wire is commonly found in aircraft, spacecraft, and military vehicles, as well as in other industries requiring high durability and dependable performance, such as telecommunications, medical devices, and industrial equipment. The combination of high-quality materials, precise manufacturing, and rigorous testing ensures that M27500 mil spec wire meets the demanding requirements of its intended applications.

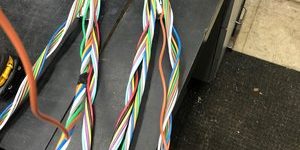

M22759 Mil-Spec wire is a high-performance wire designed to be used in military, aerospace, and other high-reliability applications where durability, reliability, and performance are critical. Constructed from high-quality materials like the M27500 mil spec wire, M22759 mil spec wire features conductors made of tinned, silver-plated, or nickel-plated copper, which provide excellent electrical conductivity and corrosion resistance. The insulation of M22759 mil spec wire is also like M27500 and is typically made from advanced fluoropolymers such as PTFE (Teflon), ETFE, or FEP, offering exceptional thermal stability, chemical resistance, and mechanical toughness.
M22759 mil spec wire is also known for its resistance to abrasion, moisture, and chemicals, ensuring long-term reliability even in challenging conditions. M22759 mil spec wire’s construction often includes a lightweight, high-strength outer jacket that further protects the wire from physical and environmental damage.
What is the difference between M27500 and M22759 mil spec wire?
While both M22759 and M27500 mil spec wires are designed to meet stringent military specifications, M22759 is a single conductor wire known for its excellent insulation properties, whereas M27500 is a multi-conductor cable that includes additional shielding and an outer jacket for enhanced protection in environments where EMI/RFI shielding and multiple conductors are required. Here are some other differences between the two models military spec wires.
M22759 mil spec wire is a single conductor wire with high-performance insulation, where M27500 is a multi-conductor cable made up of several M22759 wires with added shielding and an outer jacket.
Usually, M22759 is used for internal wiring in high-reliability systems such as aircraft and spacecraft. M27500 mil spec wire is commonly found where multiple conductors and EMI/RFI protection are needed, such as in complex avionics systems.
When it comes to shielding M22759 mil spec wire does not include an inherent shielding layer where M27500 includes a shielding layer to protect against EMI/RFI.
When we speak about environmental protection, M22759 relies on its robust insulation for environmental protection. M27500 mil spec wire has an additional outer jacket for enhanced protection against physical and environmental damage.
Purchase mil spec wire from Cai Wire today!
Looking for the highest quality wire to meet your demanding applications? Look no further than caiwire.com, your premier destination for Mil-Spec wire. Whether you’re working on aerospace, military, or high-performance industrial projects, our Mil-Spec wire offers unmatched reliability, durability, and performance. Our Mil-Spec wires meet the strictest U.S. Department of Defense standards, ensuring superior performance in the harshest conditions. Each wire we offer is expertly crafted from advanced materials like Teflon, PTFE, and silver-plated copper, providing excellent thermal stability, chemical resistance, and electrical conductivity. At CAIwire.com, we offer a wide selection of Mil-Spec wire, including M22759 single conductors and M27500 multi-conductor cables, ensuring we have the perfect wire to suit your specific needs. Choose CAIwire.com for your Mil-Spec wire requirements and experience the best in quality and performance.
