Multi Conductor Cables
High-quality multi-conductor cable only at Cai Wire!
![Shielded multi conductor cable 1 | Cai Wire Shielded multi conductor cable 1](https://caiwire.com/wp-content/uploads/2024/08/shielded-multi-conductor-cable-1.jpg)
Multi-conductor cable consists of multiple insulated conductors encased within a single outer jacket. This design allows for the efficient and organized transmission of multiple electrical signals or power lines through a single cable. Each conductor within the multi-conductor cable is individually insulated to prevent electrical interference between the different signals or power lines.
Multi-conductor cable is commonly used in applications where several electrical connections need to be managed simultaneously. This includes use in industrial control systems, where various sensors, actuators, and controllers need to communicate with one another. Multi-conductor cable is also widely utilized in telecommunications, audio and video equipment, and computer networking to transmit data and signals efficiently. Additionally, multi-conductor cable is essential in automotive and aerospace industries for wiring complex systems within vehicles and aircraft.
The primary advantage of multi-conductor cable is its ability to simplify installation and maintenance by reducing the need for multiple individual wires, thus streamlining the wiring process and minimizing clutter. This organized approach helps in maintaining system integrity and reliability, making it a preferred choice in complex electrical and electronic systems.
When is shielded multi-conductor cable the suitable solution?
![Shielded multi conductor cable 2 | Cai Wire Shielded multi conductor cable 2](https://caiwire.com/wp-content/uploads/2024/08/shielded-multi-conductor-cable-2.jpg)

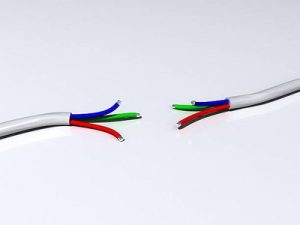

Shielded multi-conductor cable is a type of cable that combines the features of multi-conductor wiring with additional shielding to protect against electromagnetic interference (EMI) and radio frequency interference (RFI). Shielded multi-conductor cable typically consists of multiple insulated conductors twisted together and encased in an outer jacket, with one or more layers of shielding (such as foil or braided shielding) surrounding the conductors.
Shielded multi-conductor cable is used in applications where electrical noise or interference could disrupt signals and affect performance. Shielded multi-conductor cables are commonly employed in industrial automation and control systems, where reliable communication between sensors, actuators, and controllers is essential. The shielding helps to minimize the effects of EMI/RFI from nearby equipment or power lines, ensuring stable and accurate data transmission.
Additionally, shielded multi-conductor cables find use in telecommunications, audiovisual systems, and computer networking environments where maintaining signal integrity over long distances and in electrically noisy environments is critical. By reducing the risk of signal degradation or loss due to interference, shielded multi-conductor cables contribute to the overall reliability and efficiency of complex electronic and electrical installations.
The decision to use shielded multi-conductor cable is typically based on the specific requirements of the application, including the level of EMI/RFI present, the distance over which signals must be transmitted, and the need for reliable data communication. Shielded multi-conductor cable offers a robust solution for ensuring consistent performance in environments prone to electrical noise, making it a valuable component in modern electronic and communication systems.
In addition to industrial and telecommunications applications, shielded multi-conductor cables are also essential in medical equipment, where precise and interference-free communication between devices is critical for accurate diagnostics and patient monitoring. The shielding helps maintain the integrity of sensitive signals in medical imaging systems, monitoring devices, and surgical equipment, ensuring patient safety and effective healthcare delivery.
Furthermore, shielded multi-conductor cables are used in automotive electronics to connect various sensors, actuators, and control modules within vehicles. They help mitigate the effects of electromagnetic interference from engine components and other electrical systems, ensuring reliable operation of automotive electronics and safety systems.
The construction of shielded multi-conductor cables can vary based on specific application requirements, such as the level of shielding effectiveness needed and environmental conditions. Proper installation and grounding of these shielded multi-conductor cables are crucial to maximize their shielding effectiveness and ensure optimal performance in challenging electrical environments.
Could you make a custom multi-conductor cable?
![Shielded multi conductor cable 3 | Cai Wire Shielded multi conductor cable 3](https://caiwire.com/wp-content/uploads/2024/08/shielded-multi-conductor-cable-3.jpg)
Yes, it is actually possible to create a custom multi-conductor cable tailored to specific requirements and applications. First, you need to start by identifying the specific needs of the application. Before ordering custom multi-conductor cables consider factors such as the number of conductors required, conductor size (gauge), insulation material, voltage rating, current carrying capacity, and environmental conditions (e.g., temperature, moisture, abrasion resistance). Then choose the appropriate conductors based on the electrical characteristics needed for the application. Custom multi-conductor cables can operate with conductors made from copper, aluminum, or other materials depending on conductivity requirements and cost considerations. In your custom multi-conductor cable, you need to select insulation materials for each conductor based on factors such as electrical insulation properties, flexibility, thermal resistance, and chemical resistance. Common insulation materials include PVC (Polyvinyl Chloride), PE (Polyethylene), TPE (Thermoplastic Elastomer), and various types of rubber (such as EPDM or silicone). Once the custom multi-conductor cable is manufactured, it should undergo testing to ensure it meets relevant industry standards and performance requirements. Testing may include electrical tests (e.g., insulation resistance, voltage withstand), mechanical tests (e.g., flexibility, tensile strength), and environmental tests (e.g., temperature cycling, moisture resistance).
When do you need a high-temperature multi-conductor cable?
![Shielded multi conductor cable 4 | Cai Wire Shielded multi conductor cable 4](https://caiwire.com/wp-content/uploads/2024/08/shielded-multi-conductor-cable-4.jpg)
High temperature multi-conductor electrical cables are used in applications where the cable must withstand elevated temperatures beyond what standard cables can tolerate. High temperature multi-conductor cables are designed to maintain their electrical and mechanical integrity in environments where temperatures can reach extreme levels, typically above 150°C.
High-temperature multi-conductor cables find extensive use in industrial settings where equipment operates in high-temperature environments. For instance, in manufacturing processes involving furnaces, ovens, or heat treatment equipment, where ambient temperatures can be significantly elevated, high-temperature multi-conductor cables ensure reliable power and signal transmission without degradation or failure due to heat exposure.
Furthermore, high-temperature multi-conductor electrical cables are essential in automotive and aerospace industries for wiring systems in engines, turbines, and other components that generate or are exposed to high levels of heat. In these applications, high temperature multi-conductor cables must withstand not only high ambient temperatures, but also thermal cycling and mechanical stress associated with engine vibrations.
High-temperature multi-conductor cables are also used in research and laboratory equipment where extreme temperatures are involved, such as in testing chambers, scientific instruments, and specialized machinery. Their ability to maintain performance in such demanding conditions ensures accurate data acquisition and control over extended periods.
Looking for a high-quality multi-conductor cable? We have exactly what you need! At Cai Wire you will find multi-conductor cables that will satisfy all your needs. Browse our collection, including multi-conductor cable UL Tray Cable, high-temperature options, shielded cables, as well as custom solutions! Purchase multi-conductor cable UL Tray Cable and other wiring from our website!
